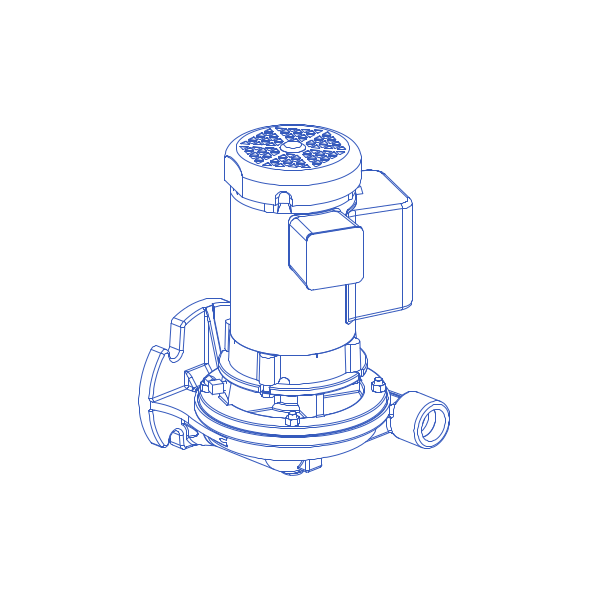

VC Series Centrifugal Pump

V Series Centrifugal Pumps are low maintenance, designed for long-life, and are easily serviceable–the impeller and seal can be serviced without disturbing piping or electrical connections. All pumps are close-coupled to heavy duty, ball bearing electric motors, and bolted directly to the receiver. V Series Centrifugal units with fractional horsepower single-phase motors have built-in thermal overload protection.

Specifications

  • 1/3 through 15 hp – various 2′ NPSHR
  • 1,725 rpm – discharge pressures are 10, 15, or 20 psi
  • 3,500 rpm – discharge pressures are 30 to 75 psi



Literature

V Series Brochure 2019
V Series Brochure 2002
V Series OM 1993

V Series OM 2021

Standard Motor Types Available

  • ODP
  • TEFC
  • Explosion-proof
  • Single-phase, 208 or 115/230 volt, 60 Hz
  • Three-phase, 208 or 230/460 volt, 60 Hz
  • Three-phase, 575 volt, on select models
